P6 LED Module

About P6 LED Module

P6 Full Color Outdoor LED Display Module

Bright, Durable, and Dynamic Visuals for Your Outdoor Advertising and Signage Needs

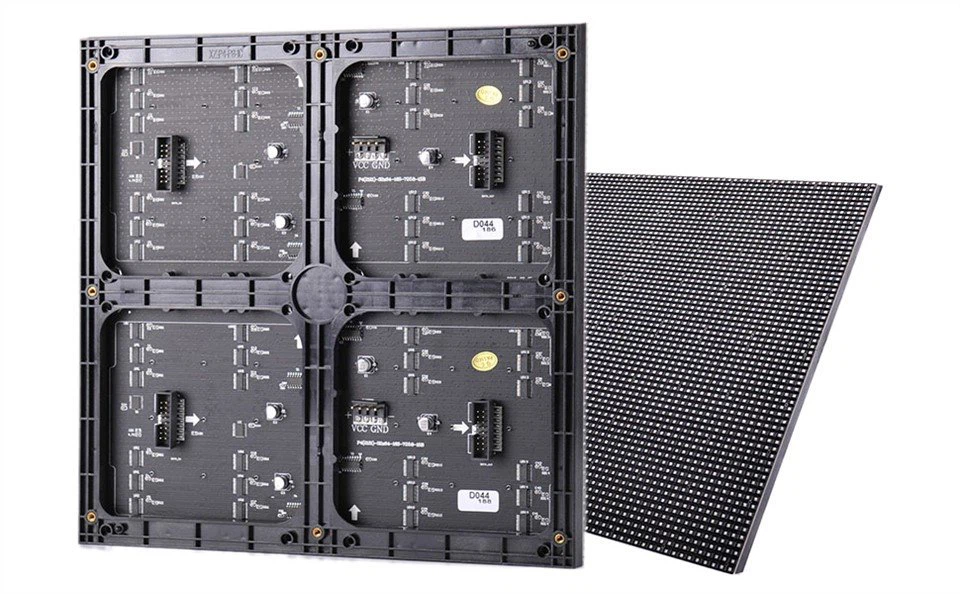

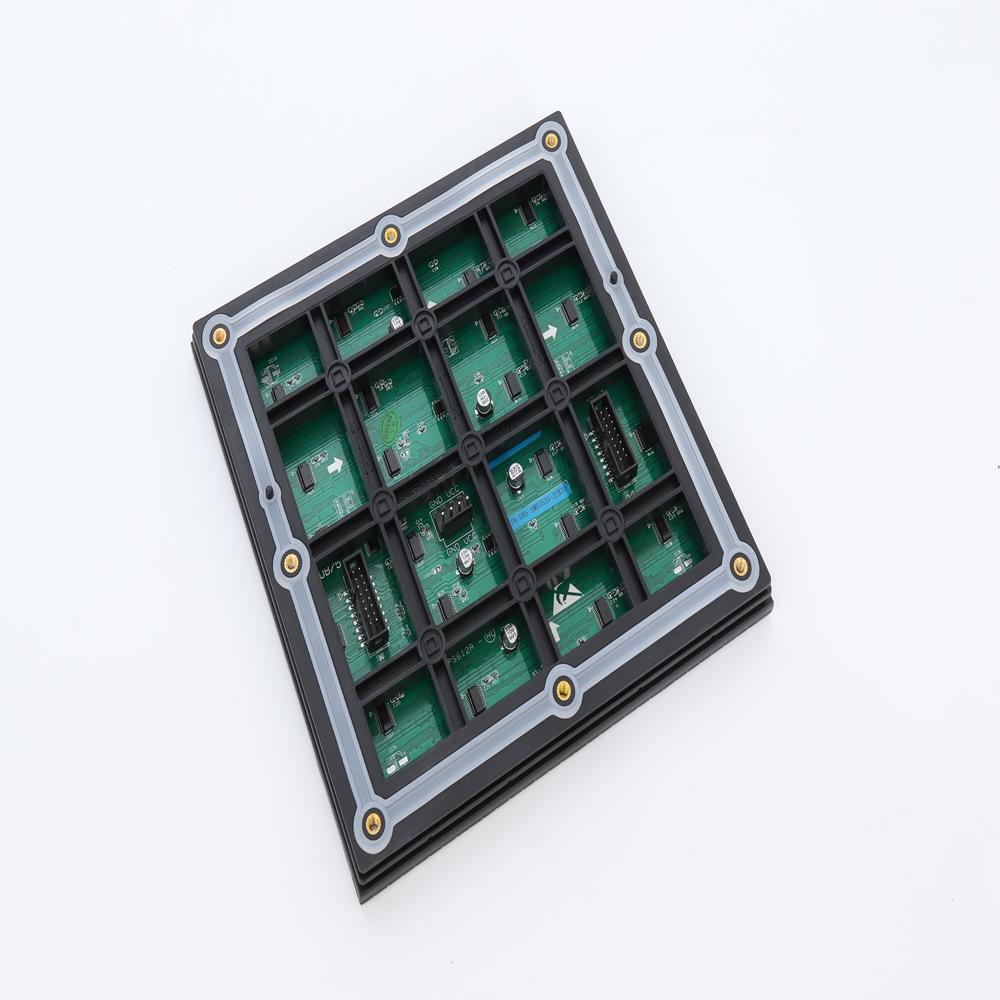

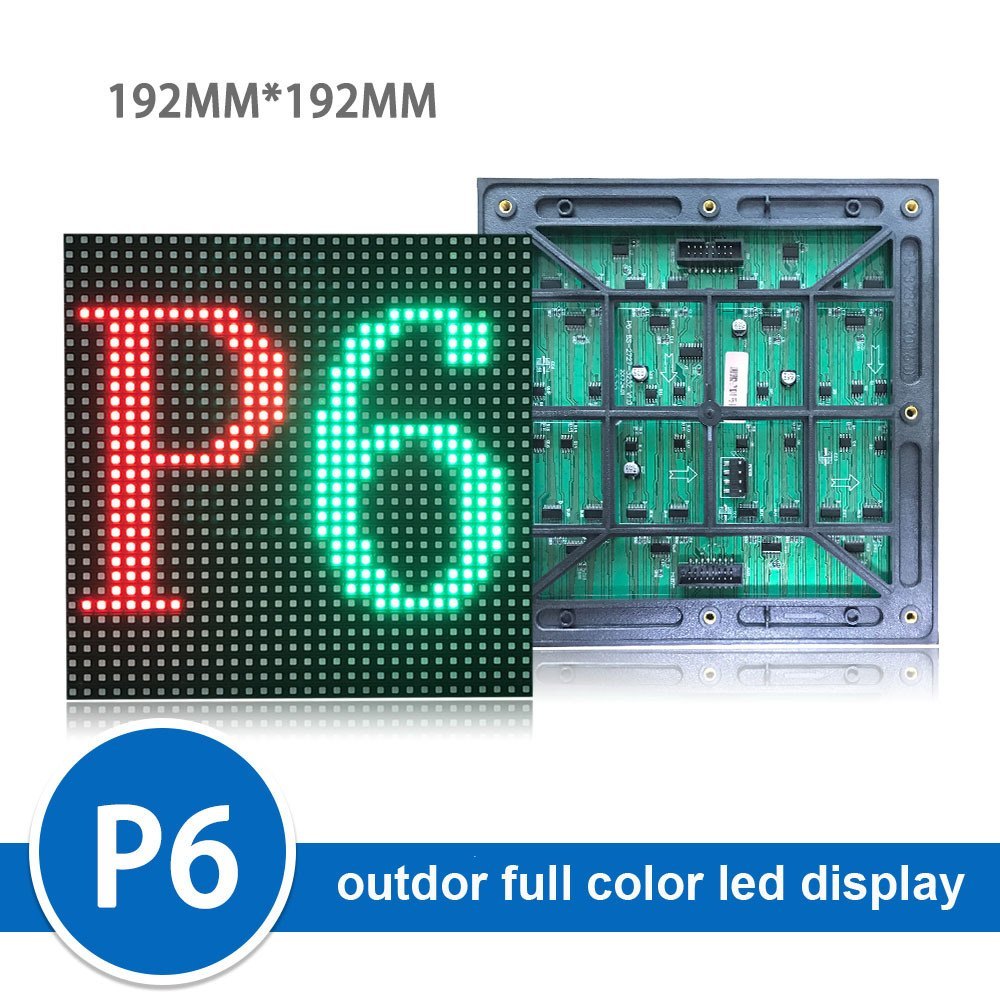

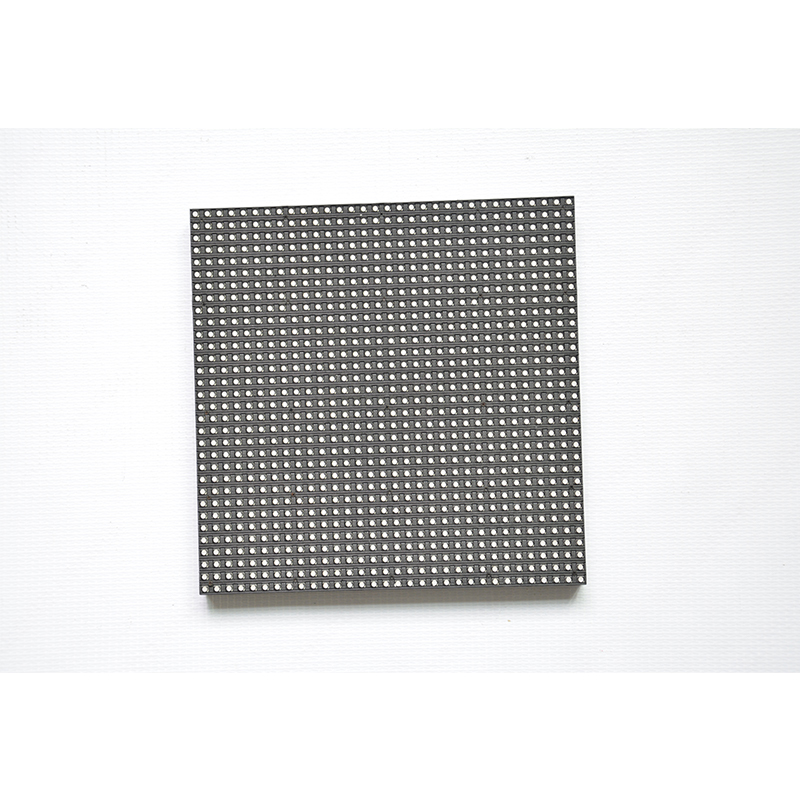

[Image Placeholder 1: Front view of the P6 LED module, clearly showing individual LEDs and connectors] [Image Placeholder 2: Back view of the P6 LED module, showing the driver ICs, power input, and data input/output ports] [Image Placeholder 3: Close-up of the waterproof casing and sealant (if applicable)] [Image Placeholder 4: Example of a larger display built with multiple P6 modules, showcasing its application]

Key Features & Benefits:

• Vibrant Full-Color Display: With a P6 (6mm) pixel pitch, experience high-resolution, rich, and vivid imagery, making your content stand out even from a distance.

• Superior Outdoor Performance: Designed specifically for outdoor environments, this module boasts high brightness (typically >5500 nits) and excellent contrast, ensuring visibility even in direct sunlight.

• Robust & Weatherproof Design: IP65-rated front and IP54-rated rear protection against dust and water ingress, guaranteeing reliable operation in diverse weather conditions, including rain, dust storms, and extreme temperatures.

• Wide Viewing Angle: Offers a wide horizontal and vertical viewing angle (typically 140/140), ensuring your message is seen clearly by a broader audience.

• High Refresh Rate: A high refresh rate (typically 1920Hz - 3840Hz) ensures smooth video playback and flicker-free images, crucial for dynamic content like advertisements and live feeds.

• Energy Efficient: Designed with power-saving technology to minimize energy consumption, reducing operational costs over time.

• Easy Maintenance & Installation: Modular design allows for quick and easy replacement of individual modules, simplifying maintenance and reducing downtime. Standardized dimensions ensure straightforward installation for various display sizes.

• Versatile Applications: Ideal for large-scale outdoor advertising billboards, stadium screens, public information displays, event backdrops, traffic signs, and more.

Technical Specifications:

• Module Dimensions (W x H): [e.g., 192mm x 192mm or 320mm x 160mm - Crucial: Please confirm the exact dimensions of your specific module]

• Pixel Pitch: 6mm

• Pixel Density: [e.g., 27777 pixels/m for 192x192mm, or 27777 pixels/m for 320x160mm, if using 32x32 pixels, adjust if 64x32 pixels]

  • Calculation Example: (1000mm/6mm) * (1000mm/6mm) = 27777.77 pixels/m

• Module Resolution (W x H): [e.g., 32 x 32 pixels for 192x192mm, or 64 x 32 pixels for 320x160mm - Crucial: Please confirm the exact resolution]

• LED Type: SMD3535 Outdoor (or SMD2727, SMD1921 - Specify your exact LED chip type)

• Brightness: 5500 cd/m (Nits)

• Color Configuration: 1R1G1B (Full Color)

• Viewing Angle (H/V): 140 / 140

• Refresh Rate: 1920Hz - 3840Hz (adjustable)

• Grayscale: 14-16 bit (up to 281 trillion colors)

• Contrast Ratio: 5000:1

• Driving Method: 1/8 Scan Constant Current (or 1/16, 1/4 - Verify your specific scan method)

• Power Consumption (Average/Max): [e.g., Average: 180W/m, Max: 550W/m - These are estimates, please provide actual values]

• Operating Voltage: DC 5V (for module)

• Protection Rating (Front/Rear): IP65 / IP54

• Operating Temperature: -20C to +50C

• Operating Humidity: 10% to 90% RH (non-condensing)

• Life Span (Typical): 100,000 hours

• Maintenance: Rear access (standard, front access also available on some models - specify if applicable)

• Module Weight: [e.g., 0.8 kg - Provide actual weight]
